| 이름: | 똑같강철판 상승을 위해 더블 후크 전기 호이스트를 높이고 넘어뜨립니다 | 생산 능력: | 0.25t-50t |
|---|---|---|---|
| 올림 높이: | 3m-24m | 걸이 거리: | 3-9m 또는 요구에 |
| 전압: | 220v-440v, 50HZ/60HZ | 유형을 통제하십시오: | 전선 케이블 제어 / 무선 원격 제어 |
| 하이 라이트: | M3 전기 와이어 로프 Hoist,24m 리프팅 와이어 로프 Hoist,10t 전선 로프 호이스트 |
||

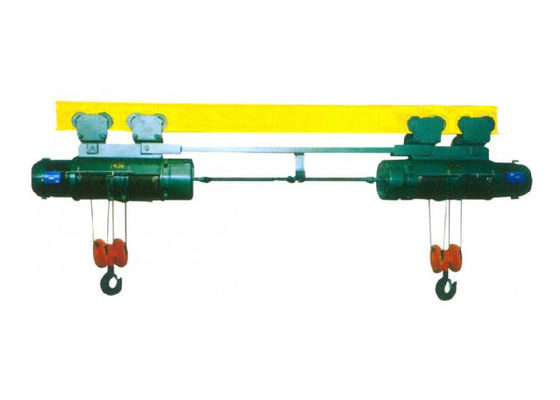

Same Lift and Fall Double Hook Electric Hoist for Steel Plate Lifting
General Description:
Double hook electric hoist is suitable for lifting extra long workpieces or items. The most notable feature of the double-rope electric hoist is that the position of the hook in the axial direction of the hoist is fixed. Therefore, this type of hoist is mainly used in places where there is no axial movement of the hoisting items, such as supporting the hoist double beam and the gate crane, power station lifting equipment etc. The hook distance can be designed according to the user's requirements.
The double hook electric hoist is consist of two CD1/MD1 electric hoists and connect them with rails. Each hoist has one motor. They are controlled by one cable button or wireless remote control so that they are lifting and falling at the same time. The hook distance can be custmoized according to customers' specific requirement, range from 3m to 24m. Before quote, customer need to confirm capacity, lifting height, hook distance and the power supply. Contact us to build your own lifting solution.
Features and advantages:
The non-standard double hook electric hoists design requirements are very high, and need manufacturers to provide customized solutions, taking into account factors such as feasibility, stability and safety. Our non-standard electric hoist design engineers carefully design each detail according to the customer's needs.
Technique parameters(reference):
| Type | DPH3+3 | DPH5+5 | DPH8+8 | |||||||||||||||
| Working Class | M3 | M3 | M3 | |||||||||||||||
| Capacity(t) | 2x3 | 2×5 | 2×8 | |||||||||||||||
| LiftingSpeed(m/min) | 8;8/0.8 | 8;8/0.8 | 7; 7/0.7 | |||||||||||||||
| Travelling Speed(m/min) | 20 | 20 | 20 | |||||||||||||||
| Lifting Motor | Type | ZD51-4; ZDS1-0.4/4.5 |
ZD51-4; ZDS1-0.8/7.5 |
ZDX51-4; ZDS1-1.5/11 |
||||||||||||||
| Power(KW) | 2×4.5; 2×4.5/0.4 |
2×7.5; 2×7.5/0.8 |
2×11;2×11/1.5 | |||||||||||||||
| Rotate Speed(rpm) | 1380 | 1380 | 1380 | |||||||||||||||
| Travelling Motor |
Type | ZDY21-4 | ZDY21-4 | ZDY21-4 | ||||||||||||||
| Power(KW) | 2×0.8 | 2×0.8 | 4×0.8 | |||||||||||||||
| Speed(rpm) | 1380 | 1380 | 1380 | |||||||||||||||
| Recommanded Track | I25-I63 | I25-I63 | I25-I63 | |||||||||||||||
| Distance between the hookL(m) | 1.5~6 | 1.5~6 | 1.5~8 | |||||||||||||||
| Lifting HeightL(m) | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 16 | 24 | 30 | |
Application photos:
