제품 상세 정보:
결제 및 배송 조건:
|
| 이름: | CD1 전기 철사 밧줄 호이스트 | 능력: | 1t-25t |
|---|---|---|---|
| 기중속도: | 8(0.8)m/min | 대들보: | 한 개의 도리 / 두배 도리 |
| 가로장 유형: | i-형, H-타입 철도 | 주행 속도: | 20개 Ｍ / 분 |
| 전압: | 380V/440V | ||
| 하이 라이트: | 20m/Min 행정 와이어 로프 호이스트,전선 로프 호이스트 5t는 전선 로프 호이스트를 숨겨 줍니다,Harbours Electric Wire Rope Hoist |
||
380V /440V 5t Electric Wire Rope Cable Hoist 20m/Min for Travel
Brief overview
The electric wire rope hoist CD1/MD1 model have features of compact structure, light weight, small size and easy operation. It can be
used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the
single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes etc. The eletric hoist model MD1 with double
lifting speed which should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during
recision operations.
Main characteristics
* Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane.
Advantages
> Motor: Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigg er torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
> Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
> Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.
> Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper
support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
> Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).
> Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.
> Hook:The Hook Block is tested to 150 % of full load before assembly.
Technical configuration
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Notes
A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.

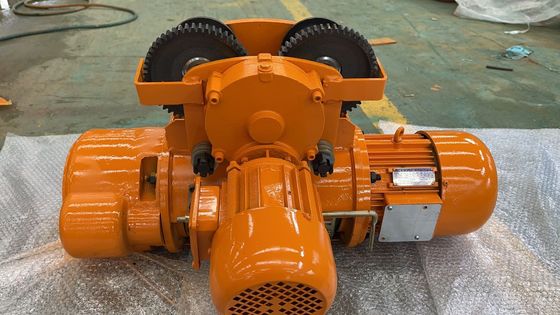

Product show:
