제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 전기 와이어 로프 호이스트가 있는 오버헤드 브릿지 크레인 | 리프팅 용량: | 5-20t |
|---|---|---|---|
| 리프팅 높이: | 9-30m | 드는 속도: | 인벤터 컨트롤+펜던트 컨트롤 |
| 유형: | 이중 대들보 | 실행 속도: | 0-20m/분 |
| ISO: | M5 M7 |
The structural design of the European-style double-girder bridge crane breaks through the traditional "heavy structure, large size" model, achieving lightweight through "material optimization + structural simplification" while ensuring load-bearing stability
1. Main beam and end beam: Thin-walled profiles + modular splicing
The main girder typically adopts a box-shaped thin-walled welded structure (often made of Q355B material), with a web thickness reduced by 15%-30% compared to traditional Chinese cranes. Through finite element analysis, the stress distribution is optimized to reduce self-weight (the overall weight is 20%-40% lighter than traditional models) while ensuring torsional and bending resistance;
The end beam is constructed using standardized profile splicing (such as H-beam or square tube) rather than traditional cast steel components, resulting in lighter weight and higher assembly efficiency. Additionally, the connection between the end beam and the main beam employs high-strength bolts (rather than welding), facilitating transportation, on-site assembly, and future maintenance or modification.
2. Hoisting mechanism: The winch is integrated, replacing traditional winches

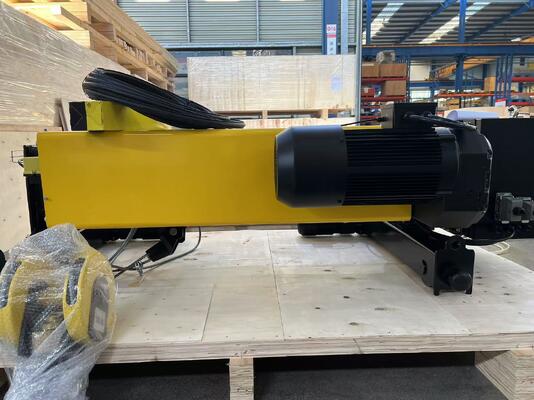

The lifting mechanism adopts European-style wire rope hoists (or chain hoists) as the core component, integrating the motor, reducer, brake, drum, and wire rope (or chain) into a compact structure (with a volume 30%-50% smaller than traditional winch lifting mechanisms);

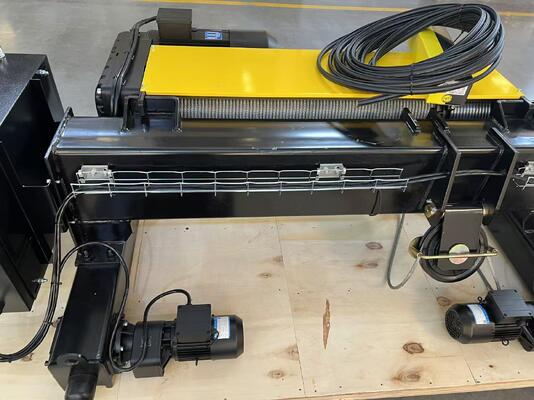

The connection between the葫芦 and the main beam is achieved through a lightweight trolley frame, which is made of aluminum alloy or high-strength steel. The trolley frame features low wheel pressure (reducing the wheel pressure by 20%-30% compared to traditional designs), thereby decreasing the load on the main beam. This also lowers the design load requirements for factory column brackets and tracks, indirectly reducing the construction costs of the factory.
It is the ideal lifing equipment in factories, mines, agriculture, electric power, construction building site, dock and warehouse for installation of the machines, lifting the cargos, loading and unloading the trucks.
1. High working effiency; Excellent Performance, safe and Reliable
2. Smooth movement & comfortable operation;
3. Convenient maintenance & aesthetic painting;
4. Compact structure, light deadweight, light wheel load and reliable performance;
5. Efficient Transmission and power Source
6. customized: design and manufacture according to your request.
| Capacity(t) | Working class | Lifting height (m) | Lifting speed (m/min) | running velocity (m/min) | Rope reeving | |
|---|---|---|---|---|---|---|
| 10 | M5 | 6 | 5/0.8 | 2-20 | 4/1 | |
| 9 | ||||||
| 12 | ||||||
| 15 | ||||||
| 18 | ||||||
| 16 | M5 | 9 | 4/0.67 | 2-20 | 4/1 | |
| 12 | ||||||
| 15 | ||||||
| 18 | ||||||
| 32 | M5 | 8 | 2.7/0.45 | 2-20 | 6/1 | |
| 10 | ||||||
| 12 | ||||||
| 16 | ||||||
| 50 | M5 | 6 | 0.53/3.2 | 2/20 | 12/2 | |
| 9 | ||||||
| 12 | ||||||
| 12 |
Q1. What types of cranes do you offer?
A1:as a manufacturer with over 15 years' experience, rui cheng provide a range of cranes,in cluding gantry cranes, overhead cranes, electric hoist, ib cranes, and customized lifting solutions tailoredto specific industry needs, such as for steel, precast concrete, and container handling
Q2. How do l know which crane is suitable for my project?
A2: Our team of experts is here to help! By understanding your lifting capacity requirements,operational environment, and usage freguency, we can recommend the ideal crane solution for your project.Contact us for a free consultation.
Q3. How to choose the right crane?
A3: The following factors need to be considered when choosing a crane: Load capacity, Lifting height Working environment, Frequency of operation.
Q4. What maintenance services do you offer?
A4: We offer comprehensive maintenance plans, including preventive maintenance,inspection, repairand spare parts replacement, to keep your crane running efficiently and safely. Our service teamis available forscheduled and emergency support.
Q5: Can you accept OEM?
A5: Yes, of course. Any logo is acceptable.Material, Color, Size, Packing, Brand, Delivery etc,
Q6:What are your delivery and installation timelines?
A6: Delivery and installation timelines vary based on the type and customization of the crane Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions mayreauire additional time, We aim to provide accurate timelines upfront to ensure smooth proiec tplanning.
Q7: Do you offer installation services?
A7: Yes, we provide comprehensive training programs for crane operators, including safety trainingmaintenance guidelines, and operational best practices to ensure your team is fully prepared tooperate the crane safely and efficiently.
