| MOQ: | 1 유닛 |
| 가격: | USD negotiate per unit |
| standard packaging: | 합판 상자 |
| Delivery period: | 10 -15 작업 일 |
| payment method: | L/C (신용장), 전신환, 웨스턴 유니온, 머니그램, D/P (지급도 조건), 인수 인도 |
| Supply Capacity: | 달 당 500 PC |

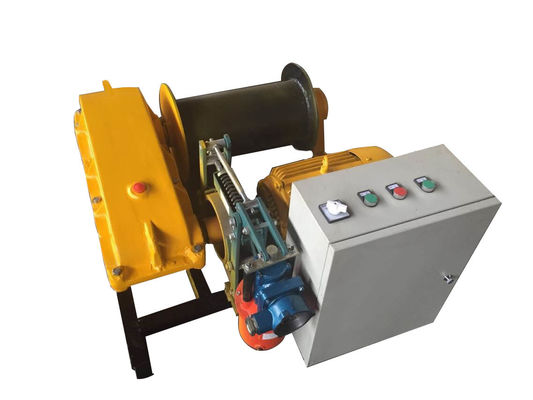

Construction10T Electric Lifting Winch 100M Wire Rope 30m/Min For Hoisting
Brief overview
This wire rope electric winch is gear reducer driving winch. This series of electric winch is mainly used for hoisting, pulling and unloading, towing the heavy cargo, such as various types of large and medium sizes of concrete, steel structure, installation and disassembly of mechanical equipment. It's applicable to civil construction and installation projects of construction and installation enterprises, mining areas and factories, etc.
Slow speed use for crane and installation industry feature
Technical parameters
| Model | Cable rated pull (kg) |
Cable rated speed (m/min) |
Wire rope (ɸmm) |
Reduction box | Drum(mm) | ||
| Type | Transmission ratio |
Dia(ɸ) | Length | ||||
| JM2 | 2000 | 12 | 15.53 | JZQ350 | 23.34 | 260 | 480 |
| JM3 | 3000 | 10 | 17 | JZQ350 | 31.50 | 310 | 510 |
| JM5 | 5000 | 11 | 21.50 | JZQ400 | 23.34 | 400 | 730 |
| JM8 | 8000 | 10 | 26 | JZQ500 | 31.50 | 500 | 900 |
| JM10 | 10000 | 9 | 30 | JZQ650 | 40.17 | 550 | 1000 |
| JM12 | 12000 | 9 | 32 | JZQ650 | 40.17 | 650 | 1000 |
| JM16 | 16000 | 6.6 | 36.5 | JZQ750 | 31.50 | 750 | 1830 |
| JM20 | 20000 | 7.7 | 39 | JZQ750 | 31.50 | 750 | 1830 |
| JM25 | 25000 | 8.5 | 42 | JZQ750 | 31.50 | 850 | 1925 |
| JM30 | 30000 | 8.5 | 48 | JZQ850 | 23.34 | 960 | 1960 |
JK fast speed electric winch
Technical parameters
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 | 45 |
Advantages
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
Factory show
|
|
