| 제품명: | 발명가 제어 10T 전기 와이어 로프 호이스트 | 리프팅 용량: | 10T |
|---|---|---|---|
| 리프팅 높이: | 9-30m | 리프팅 속도: | 듀얼 스피드 |
| 달리기 속도: | 5-20m/min, 인벤터 제어 | 이소: | M5 M7 |
| 유형: | 한 개의 도리 |

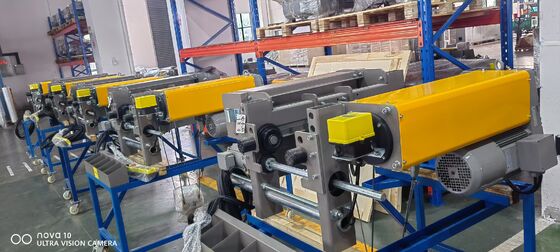

The European style electric hoist is a new type of electric hoist featuring lightweight, modular, and maintenance-free design. Developed through foreign technology assimilation and optimized configuration with new materials and refined technology, it incorporates German-made lifting motors and reducers. The integrated compact design combines the lifting motor, reducer, drum, and lifting limit switch to save space. Modular design enhances safety while reducing maintenance time and costs. Multiple lifting speed options and pulley speeds are available.
The key to SHSL European style electric hoist is the improvement of safety and efficiency
The SHSL series of electric hoists has achieved a good reputation for its strong reliability and durability in various environmental applications worldwide
All functions of the new generation SHSL electric hoist have been reviewed, and the entire series of innovative applications provide a new level of user friendliness and performance, resulting in an easy-to-use, high durability lifting mechanism,. The wire rope electric hoist has been designed to meet customer expectations and improve their work efficiency. With increased safety and efficiency
SHSL gourd is an intelligent design that is easy to load and unload
SHSL wire rope electric hoist can reach a maximum of 32 tons SWL
Compared with traditional motor brake hoists, the unique hoist design equipped with gearbox brakes provides higher safety, reliability, and maintainability,
| Rated load S.W.L (Kg) | Work level | Lifting Height | Lifting speed | Traveling speed | |
|---|---|---|---|---|---|
| SHSL-A | FEM | ISO | m | m/min | m/min |
| 2000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 5~20 |
| 3200 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 5~20 |
| 5000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 5~20 |
| 6300 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 5~20 |
| 8000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 5~20 |
| 10000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 5~20 |
| 12500 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.8/5 | 5~20 |
| 16000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.66/4 | 5~20 |
| 20000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.66/4 | 5~20 |
A: 1 Set
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period
A: One year except the easy broken spare parts
A: Yes; We have, We can provide oversea services
A: Electric wire rope hoist; Electric chain hoist; electric winch; Overhead Crane; Gantry Crane; JIB Crane; Portable Crane; KBK Crane; Lifting tools etc.
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet, pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
A: For electric hoist, we need to know:
Once confirmed, we will provide our best offer.
