제품 상세 정보:
결제 및 배송 조건:
|

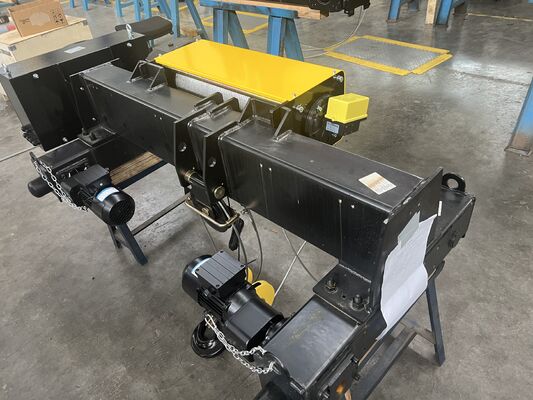

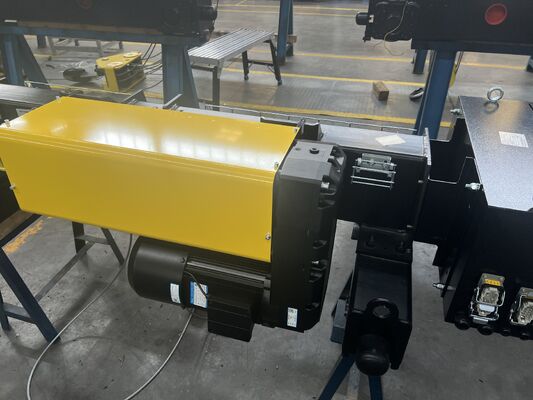

| 제품명: | 16 톤 20 톤 32 톤 유럽식 와이어 로프 전기 호이스트 | 리프팅 용량: | 16-32T |
|---|---|---|---|
| 리프팅 높이: | 9-45m | 드는 속도: | 발명가 제어 |
| 유형: | 이중 대들보 | 실행 속도: | 5-20m/분 |
| ISO: | M5 |
Structural Design:
The European-style Wire Rope Electric Hoist small car electric hoist adopts a uniquely designed spatial rod support structure, which not only enhances the stability of the equipment but also optimizes the overall force distribution.
The spatial rod support structure enhances the stability of the crane during operation, reducing sway.
2. The classic "C"-shaped structural layout of the lifting device ensures smooth and efficient lifting operations.
3. The coaxial three-in-one drive unit design enables synchronous driving of dual-side wheel assemblies, enhancing operational coordination.
Lifting system:
The lifting drive mechanism operates the large-diameter drum assembly, working in conjunction with high-strength nylon pulley and hook systems to ensure the safety and reliability of the lifting process.
1. The large-diameter drum assembly design increases the number of rope wraps, enhancing lifting capacity.
2. High-strength nylon pulley set, resistant to wear and corrosion, extends service life.
3. The hook assembly has undergone special treatment, offering higher load capacity and enhanced safety.
Drive mode
The coaxial three-in-one drive unit is a standout feature of theEuropean-style Wire Rope Electric Hoist, as it simultaneously drives both side wheel sets, achieving an efficient operation mode.
The three-in-one drive unit integrates the motor, reducer, and brake, simplifying the structure and improving transmission efficiency.
2. The synchronous driving of dual wheel sets ensures stable operation of the crane on both straight and curved tracks.
3. The drive mechanism is designed with rationality and ease of maintenance, reducing operational costs.
Material Selection:
The European-style Wire Rope Electric Hoist is meticulously crafted in material selection, ensuring the product's durability and reliability.
1. The support members and key components are made of high-strength steel, enhancing the overall load-bearing capacity.
2. The nylon pulley set and hook set are made of high-quality materials, offering excellent wear and corrosion resistance.
3. The rope wedge device is made of special materials, ensuring the tightness and safety of the rope.
| ITEM | VALUE |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Place of Origin | China |
| Power Source | Electric |
| Sling Type | Wire Rope/chain/winch/european |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Bearing, Gear, Gearbox |
| Capacity(t) | Working class |
Lifting height (m) |
Lifting speed (m/min) |
running velocity (m/min) |
Rope reeving |
|
|---|---|---|---|---|---|---|
| 10 | M5 | 6 | 5/0.8 | 2-20 | 4/1 | |
| 9 | ||||||
| 12 | ||||||
| 15 | ||||||
| 18 | ||||||
| 16 | M5 | 9 | 4/0.67 | 2-20 | 4/1 | |
| 12 | ||||||
| 15 | ||||||
| 18 | ||||||
| 32 | M5 | 8 | 2.7/0.45 | 2-20 | 6/1 | |
| 10 | ||||||
| 12 | ||||||
| 16 | ||||||
| 50 | M5 | 6 | 0.53/3.2 | 2/20 | 12/2 | |
| 9 | ||||||
| 12 | ||||||
| 12 |
Q1. What types of cranes do you offer?
A1:as a manufacturer with over 15 years' experience, rui cheng provide a range of cranes,in cluding gantry cranes, overhead cranes, electric hoist, ib cranes, and customized lifting solutions tailoredto specific industry needs, such as for steel, precast concrete, and container handling
Q2. How do l know which crane is suitable for my project?
A2: Our team of experts is here to help! By understanding your lifting capacity requirements,operational environment, and usage freguency, we can recommend the ideal crane solution for your project.Contact us for a free consultation.
Q3. How to choose the right crane?
A3: The following factors need to be considered when choosing a crane: Load capacity, Lifting height Working environment, Frequency of operation.
Q4. What maintenance services do you offer?
A4: We offer comprehensive maintenance plans, including preventive maintenance,inspection, repairand spare parts replacement, to keep your crane running efficiently and safely. Our service teamis available forscheduled and emergency support.
Q5: Can you accept OEM?
A5: Yes, of course. Any logo is acceptable.Material, Color, Size, Packing, Brand, Delivery etc,
Q6:What are your delivery and installation timelines?
A6: Delivery and installation timelines vary based on the type and customization of the crane Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions mayreauire additional time, We aim to provide accurate timelines upfront to ensure smooth proiec tplanning.
Q7: Do you offer installation services?
A7: Yes, we provide comprehensive training programs for crane operators, including safety trainingmaintenance guidelines, and operational best practices to ensure your team is fully prepared tooperate the crane safely and efficiently.
